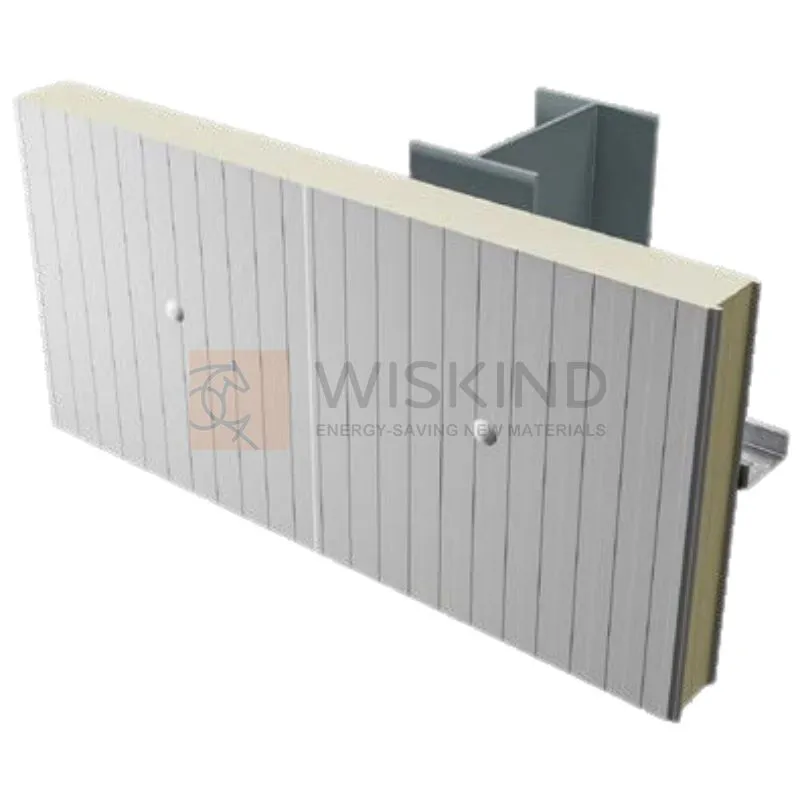

Colorspar® PU wall panel replaces the traditional external wall building materials, has the characteristics of heat insulation, waterproof, fire prevention, energy saving, etc., and is easy to install, which greatly saving labor costs. It suitable for peripheral protection systems, commercial buildings, mobile homes, etc.
Polyurethane (PU) sandwich wall panel is a type of composite building material consisting of a core of rigid polyurethane foam sandwiched between two layers of a structural material, such as metal or fiberglass.
These sandwich wall panels are widely used in construction due to their excellent insulation performance, lightweight structure, and long-lasting durability. They serve as both wall and roof panels in industrial, commercial, and residential buildings. The foam core delivers effective thermal and acoustic insulation, while the outer layers offer structural strength and resistance to weather conditions.
Wiskind Group's PU (Polyurethane) Sandwich Wall Panels are engineered to provide exceptional thermal insulation, structural integrity, and aesthetic appeal for a wide range of building applications. These panels are designed to meet the rigorous demands of modern construction, ensuring energy efficiency and durability.
Superior Thermal Insulation:
The polyurethane core offers excellent thermal resistance, maintaining optimal indoor temperatures and reducing energy consumption.
Lightweight and High Strength:
Despite their lightweight nature, these panels provide robust structural support, facilitating easy installation and reducing construction time.
Fire Resistance:
PU Sandwich Wall Panels meet stringent fire safety standards, enhancing the overall safety of the building.
Aesthetic Versatility:
Available in various surface styles and colors, these panels can be tailored to match diverse architectural designs.
Advantages
-Excellent thermal insulation performance reduces building energy consumption

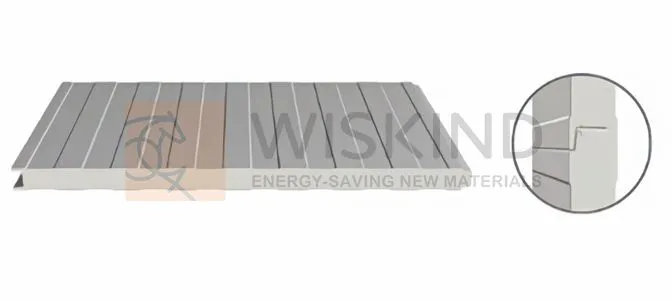

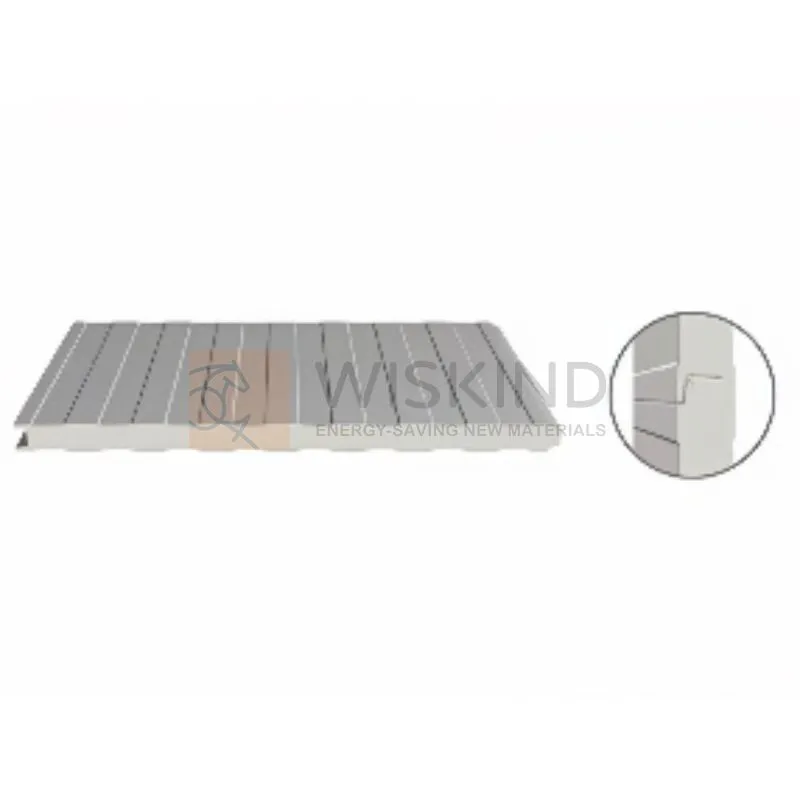

-Secret nail connection allows the building façade to be more aesthetic
-Unique double support plug-in design offers superior wind pressure resistance
-A variety of panel types are available, creating different effects
Thermal Insulation: Maintains consistent indoor temperatures, contributing to energy efficiency.
Structural Support: Provides stability and strength to building structures. PU sandwich wall panels have high compressive and tensile strength, making them suitable for load-bearing applications.
Fire Safety: Enhances the building's resistance to fire hazards.
Acoustic Insulation: Reduces noise transmission, creating a quieter indoor environment.
Lightweight: These panels are easy to handle and transport, making them ideal for structures that require relocation or repositioning
Durable: Designed to withstand harsh weather conditions, the panels offer long-lasting performance, making them suitable for outdoor use.
Versatile: Easily cut and shaped, the panels can be customized to meet specific design and architectural needs.
Easy Installation: Quick and straightforward to install, the panels help reduce both construction time and labor costs.
Specifications
| Sheet specification | Width | 1000mm |
| Thickness | 50-100mm | |
| Length | ≤24000mm | |
| style | European secret nail S-10/ Asian secret nail S-20/ Asian secret nailS-0 | |
| Insulated core-PIR | Fire Rating | B1、B2、B3 |
| Density | 40±2kg/m³ | |
| Thermal Conductivity | ≤0.024w/m·k | |
| Closed Cell Rate | ≥95% | |
| Water Absorption | ＜3% | |
| Working Temperature | -170℃~+100℃ |
Typically made of pre-painted galvanized steel (PPGI) or other durable materials, providing protection and aesthetic appeal.
High-density polyurethane foam, offering superior insulation properties.
Ensures airtightness and prevents moisture ingress, enhancing the panel's durability.
PU sandwich wall panels are used across a wide range of industries due to their excellent insulation and structural properties. Common applications include:
Building Construction: Utilized as wall and roof panels in commercial, industrial, and residential buildings.
Cold Storage: Provides thermal insulation for refrigerated warehouses, cold rooms, and transport containers.
Transportation: Used in the walls and roofs of trailers, truck bodies, and shipping containers.
Portable Shelters: Ideal for mobile homes, temporary cabins, and emergency shelters.
Clean Rooms: Installed as walls and ceilings in controlled environments such as laboratories and electronics manufacturing facilities.
Agricultural Buildings: Applied in barns, stables, and other farm structures for both wall and roof insulation.
Sports Facilities: Used in the construction of indoor sports venues, including gymnasiums and ice rinks.
Certifications
Customized Solutions:
Tailored panel designs to meet specific project requirements.
Technical Support:
Expert guidance throughout the project lifecycle, from design to installation.
Quality Assurance:
Products manufactured under strict quality control standards, ensuring reliability and performance.
Global Reach:
Serving clients worldwide with efficient logistics and responsive customer service.
Need A Custom Solution?
Feel free to reach out for any queries. We would be happy to help!
